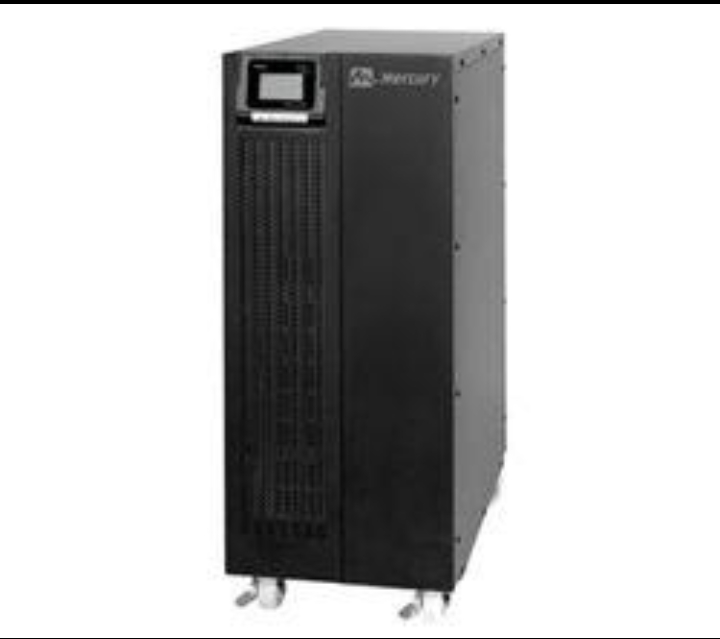

Mercury EP40KVA Online UPS.

Description

·        Application: Small network, servers and other IT

·        Equipment: High frequency and double conversion on-line technology

·        Fully digitized microprocessor control

·        Wide input voltage range

·        UPS startup without battery

Cold start

·        Advanced battery management

·        Advanced battery charge in UPS off mode

·        Lightning and surge protection

·        Short circuit and surge protection

·        Fan speed auto control when loads vary

·        Optional extension battery pack

·        Load capacity display

·        Smart RS232 communication with monitoring software

·        Optional SNMP card slot

Specifications

Power:                       10KVA / 7000W

Voltage range:          176 ±5VAC~276 ±5VAC,

Frequency:                 46~54Hz ±0.5Hz, or         56~64Hz ±0.5Hz auto-sensing

Input phase:              Single-phase

Power factor:           ≥0.98

Voltage range:          220VAC ±1%

Output phase:          Single-phase

Frequency:                50Hz ±0.2% (battery mode)

 THD:                          < 2% (Linear load); < 6% (non-Linear load)

Overload:  105%~130% 10min turn to Bypass mode,> 130% 1s turn to Bypass mode

Crest factor:             3:1 (max)

Waveform:              Pure sine wave

Transfer time 0ms: (AC mode – Battery mode)

0ms:                          (AC mode – Bypass mode)

Efficiency:                 ≥88%

AC mode:                 5 cycles turn off the inverter, no transfer to Bypass, provide alarm.

Battery mode:        5 cycles turn off the inverter, provide an alarm.

Bypass mode Input fuse has blown or break action.

Battery Model:      12V sealed lead acid maintenance-free

DC voltage:            240VDC

Configuration:      20x 12V/8.2AH

Backup time:        13min (half load) / 5min (full load)

Charge current:    1A (standard unit) / 5A (long time unit)

Recharge time:      90% capacity after 8hrs charging

Communication Interface RS232; SNMP (optional)

Parallel Port Parallel availability for redundancy and load sharing up to three-units

LCD Indication Input voltage/frequency; battery voltage; output voltage/frequency; load watt/VA value & percent; inverter temperature; operation mode such as “on batt” or “on bypass”

LED Indication Green: normal operation; Yellow: warning condition

Red:                        abnormal operation

Noise level:          ≤ 55dB

Temperature 0~40˚C; 0 ~ 40˚C (storage temperature)

Humidity:             0~95% (non-condensing)

Altitude:                < 1500m

Weight Net/Gross:  92/107kg (standard unit); 36/51kg (long time unit)

Dimension:         (WxDxH) 270 x 570 x 720mm

Packaging:           (WxDxH) 370 x 670 x 940mm
