Commercial LED Monitor 75” TR3DJ-B Series IPS UHF IR Multi Touch

Product Details:

PANEL: Screen Size 75”Panel Technology IPS

Back Light Type DirectAspect Ratio 16:9

Native Resolution 3,840 x 2,160 (UHD)Brightness (Typ., cd/m², w/ Protection Glass) 330

Contrast Ratio 1,100:1Viewing Angle (H x V) 178 x 178

Response Time 8ms (G to G)Life Time (Typ.) 30,000 Hrs (Min.)

Operation Hours 16 HrsOrientation Landscape

CONNECTIVITY:

(Input) Video / Audio HDMI (3), RGB/Audio In(Input) External Control RS232C In

(Input) USB USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2)(Output) Video / Audio HDMI (1), Optical Output/Audio Out

MECHANICAL SPECIFICATION:

Bezel Color BlackBezel Width (Off Bezel) Top/Right/Left:17.7mm, Bottom:45.7mm

Monitor Dimension (W × H × D) 1,709 × 1,020 × 86 mmWeight (Head) 53kg

Carton Dimensions (W x H x D) with pallet 1,950 × 1,266 × 285 mmPacked

Handle YesVESA™️ Standard Mount Interface 800 x 400

ENVIRONMENT CONDITIONS:

Operation Temperature 0°C to 40°COperation Humidity 10% to 80%

POWER

Power Supply 100-240V~, 50/60HzPower Type Built-In Power

Power Consumption (Typ. / Max.) 175/294 W

SOUND:Speaker Built in 24W (12W + 12W)

STANDARD(CERTIFICATION)

Safety CB/NRTLEMC FCC Class "A"/CE

ErP/Energy Star Yes (EU Only)/No

MEDIA PLAYER COMPATIBILITY

OPS type compatible Yes

ACCESSORY:

Basic Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Control

SPECIAL FEATURE:

Embedded Writing Software Yes

TOUCH SPECIFICATIONS:

Touch type IRAvailable object size for touch Ø3mm↑

Response Time 60ms↓ (Android)/100ms↓ (Windows)Accuracy 1.5mm

Interface USB 2.0Protection Glass Thickness 4T (Anti-Glare)

Protection Glass Transmission 87%Operating System Support Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)

Multi touch point Max 20 points/Max 10 writing

KEY FEATURES:

UHD (3,840x2,160) IPS Display IR Multi touch point (Max 20 points/Max 10 writing) Dual Pen and Dual ColorAirClass, ScreenShare Pro, & Bluetooth Connectivity, Integrated OPS slot.

LG 75” TR3DJ-B Series IPS UHD IR Multi Touch Interactive Whiteboard with Embedded Writing Software, Built-in Speakers, & VESA™️ Mount Compatibility, front view empty.

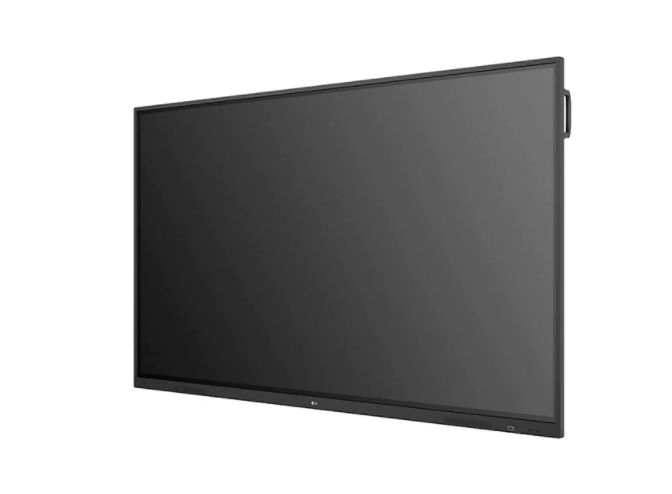

LG 75” TR3DJ-B Series IPS UHD IR Multi Touch Interactive Whiteboard with Embedded Writing Software, Built-in Speakers, & VESA™️ Mount Compatibility, right angle.

LG 75” TR3DJ-B Series IPS UHD IR Multi Touch Interactive Whiteboard with Embedded Writing Software, Built-in Speakers, & VESA™️ Mount Compatibility, right side view.

LG 75” TR3DJ-B Series IPS UHD IR Multi Touch Interactive Whiteboard with Embedded Writing Software, Built-in Speakers, & VESA™️ Mount Compatibility, left side view
