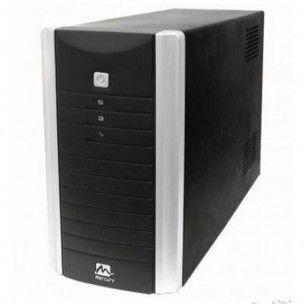

Mercury Elite 2000VA UPS

Details

Mercury Elite 2000VA Pro Ups
Mercury Elite 2000VA Pro Line Interactive UPS provides a vigorous backup solution for your home and office power backup needs.  The Mercury Elite 2000VA Pro UPS (2KVA) gives solid protection for your equipment.   It comes with a built-in AVR function to protect against dangerous NEPA fluctuations.

Features

The Mercury Elite 2000VA Pro UPS  is designed with advanced technology to deliver maximum availability and durability.

* Wide input voltage range
* Compatible with generators
* Overload protection
* Short circuit protection
* Built-in AVR
* Battery deep discharge protection & overcharge protection

1-year warranty, backed with local service support at its well-equipped service centers, Mercury UPS will deliver long years of dependable service.fication

Rating input voltage :  2000 VA / 1200 W
Rating input frequency  : 60/50Hz (auto sensing)
Input phase  :  Single-phase
Input socket  :  With Fuse
Cold Start (0 to 100% load)  :  Press the ON/OFF Switch
Input Range (220V) :   140-300
Rating output(VA)  :  2000
Rating output (W)  :  1200
Power factor  :  0.6
Rating output voltage (V)  :  220
Waveform :   Battery mode (simulated sine wave)AC mode(sine wave)
AC Voltage Regulation :   ±10% (Battery mode)
Rear output socket  :  4 x Universal – Battery backup
Waveform :   Simulated Sine Wave (Battery mode)
Line Mode  :  Synchronize with the utility
Rating frequency  :  60Hz or 50 Hz ± 1 Hz
Battery Mode :   Yellow flashing
Short circuit protection Line Mode :   Fuse & Firmware protection
Short circuit protection Battery Mode  :  Firmware Protection
Overload protection Line Mode :   110%±5%; Go to fault mode Line Mode after 5 minutes, 120%±5%; Go to fault mode immediately.
Overload protection Battery Mode :   110%±5%; Shutdown after 5 seconds, 120%±5%, Shutdown immediately
Indicators AC mode  :  Green Lighting
Indicators Battery Mode :   Yellow Flashing
Indicators Fault  :  Red Lighting
Alarm Battery Mode  :  Sounding every 10 Seconds
Alarm Low Battery  :  Sounding every Second
Alarm Overload :   Sounding every 0.5 second
Alarm Fault  :  Continuously sounding
Full Protection :   Overload, discharge, andOvercharge protectionTransfer Time    Typical 2-6ms, 10ms max.
Transfer Time    Typical 2-6ms, 10ms max.
Communication Interface  :  Optional RS232/RJ11
Battery and runtime Rating  :  2 X 12V/9AH
Recharge time – Typical  :  6-8 hours recover to 90% capacity
Charge current    About 1A at normal mode.
Dimension, W X H X D (cm)  :  22.5 X 12.5 X 39
Net Weight (kgs) :   12.7KGS
Humidity  :  0-90 % RH @ 0- 40°C (non-condensing)
Noise Level  :  Less than 45dB
Compatible with OS  :  Supports Windows®
2000/2003/XP/Vista/2008/7
Communication interface  :  Elite 2000pro (N/A),
Elite 2000ipro (USB/RJ11)
